NIMBUS 5 M POCKET

Nimbus 5 M Pocket combines high performance, smart connectivity and easy installation in one compact heat pump for heating and cooling. The compact outdoor unit, integrated installation accessories and smart controls provide flexible heating management, seamless system integration and enhanced energy savings for modern homes.

Nimbus 5 features environmentally friendly R290 refrigerant, for near zero-emissions and COP up to 5.1.

Designed for easier, faster installation, supported by a comprehensive set of installation-friendly features such as wheels for effortless positioning, and quick connectors.

Thanks to the Ariston NET app, users can easily control NIMBUS 5 remotely.

Request more informationRequest more informationContact us
bundle_pocket_mod_logo_4_
bundle_pocket_mod_logo_4_
odu_small_sx_copia
nimbus_tecnico_dettaglio_apertura_1_
nimbus_ambiente_pocket_lb_int_2

advantages and benefits

  • R290 gas refrigerant and COP of up to 5.1
  • Integrated anti-freeze kit, drain pan, cone filter* and Y strainer water filter kit**
  • Up to 40% more compact outdoor unit than the market average
  • SENSYS HD control offers temperature management for up to six zones
  • Effortless integration with boilers, PV systems, solar panels and cylinders thanks to patented BridgeNet®
    technology
  • Practical features for easy installation and transportation
  • Smart home connectivity via the Ariston Net app for up to 25% savings on bills
  • Intuitive defrost system activates only when necessary to optimise efficiency
  • Option for Wi-Fi, 4G and LAN connectivity, ideal for multi-dwelling developments



*30m, 50m, 80m units, **120m, 150m unit

Request more informationRequest more informationContact us
NIMBUS 5 M POCKET
discover its features
NIMBUS 5 M POCKET
discover its features

R290 REFRIGERANT: LOW EMISSIONS, HIGHER ENERGY EFFICIENCY

Nimbus 5 uses R290 natural refrigerant to boost efficiency and reduce environmental impact, achieving near-zero GWP and a COP of up to 5.1.

INTEGRATION WITH ARISTON SYSTEMS AND SOLAR PV

Nimbus 5 integrates effortlessly with boilers, PV systems, solar thermal, tanks, and any type of emitter, using the patented Bus BridgeNet® technology.

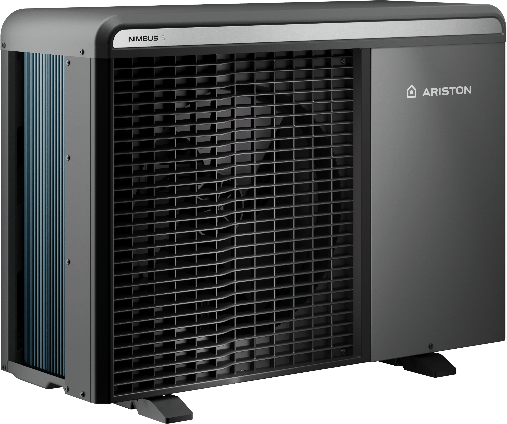

NEW AND COMPACT DESIGN, UP TO 40% SPACE SAVING

40% smaller than average, our outdoor unit ranks among the most compact on the market, seamlessly blending into outdoor spaces and minimising visual impact without compromising performance.

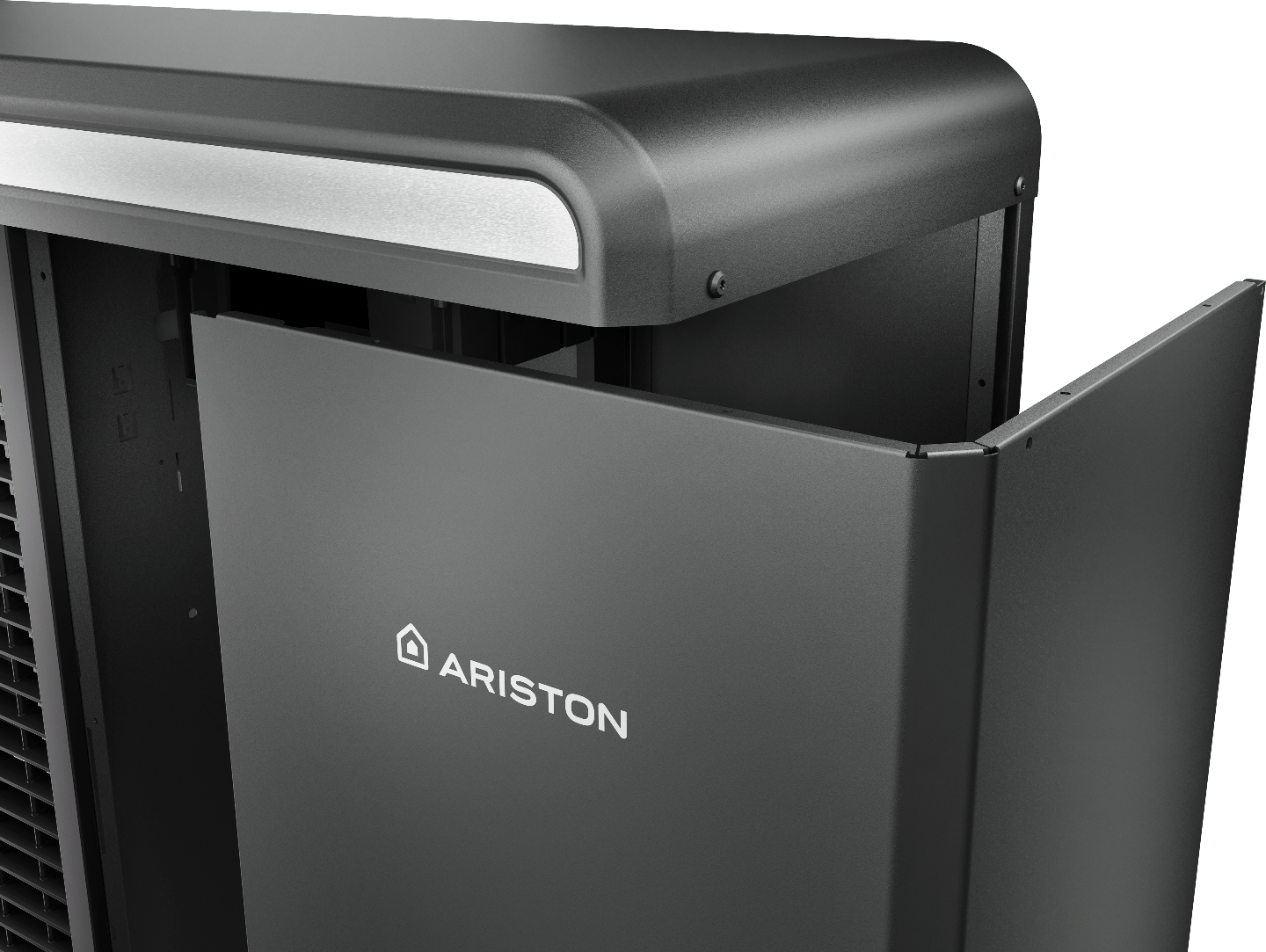

DESIGNED FOR EASY INSTALLATION AND SERVICE

Co-developed with trusted industry professionals, NIMBUS 5 is designed for easier, faster installation, supported by a comprehensive set of installation-friendly features and a spacious, optimised layout that can allow for installation in one day, depending on project complexity.

QUIET OPERATION, WITH 3 ADJUSTABLE NOISE LEVELS

The outdoor unit is engineered for low noise operation, with three programmable noise reduction levels, designed to adapt to different needs of everyday life, ensuring maximum acoustic comfort.

CONNECTED COMFORT, MADE SIMPLE WITH THE ARISTON NET APP

Thanks to the Ariston NET app, users can easily control NIMBUS 5 remotely. In addition, smart features powered by artificial intelligence like Smart Scheduling and Geofencing bring comfort to the next level. Ariston NET ensures peace of mind with 24/7 remote assistance from authorised service partners, available after signing a maintenance contract.

Technical data

NIMBUS 5 POCKET 30 M R290

NIMBUS 5 POCKET 50 M R290

NIMBUS 5 POCKET 80 M/M-T R290

NIMBUS 5 POCKET 120 M/M-T R290

NIMBUS 5 POCKET 150 M/M-T R290
PERFORMANCES IN HEATING

Capacity at -7°C / +35 °C (Min./Nom./Max.)

0.82 / 2.50 / 3.14

1.06 / 5.00 / 5.53

1.63 / 7.00 / 7.92

2.20 / 9.00 / 11.0

2.19 / 11.0 / 12.43

COP nom -7°C / +35 °C

3.10

3.00

3.00

3.00

2.80

Capacity at +7°C / +35 °C (Min./Nom./Max.)

1.21 / 3.00 / 3.73

1.63 / 5.00 / 7.37

2.37 / 8.00 / 11.08

3.33 / 12.0 / 14.08

3.39 / 15.0 / 16.81

COP nom at +7°C / +35 °C

5.10

5.00

4.80

4.80

4.30

Capacity at +2°C / +45 °C (Min./Nom./Max.)

1.02 / 1.90 / 3.78

1.31 / 3.10 / 6.69

1.99 / 4.60 / 9.89

2.72 / 6.40 / 13.11

2.70 / 7.50 / 15.09

COP nom +2°C / +45 °C

3.20

3.10

3.20

3.40

3.30

Capacity at +7°C / +55 °C (Min./Nom./Max.)

1.12/2.20/3.94

1.42/3.80/6.45

2.17/5.80/9.85

3.00/7.70/12.44

2.98/9.50/15.19

COP nom +7°C / +55 °C

3.10

3.00

3.00

3.20

3.15
PERFORMANCES IN COOLING
ERP DATA
PRODUCT CODE
more information bundle_pocket_mod_logo_4_
NIMBUS 5 M POCKET
Message
Email
Phone

I accept the privacy's information

Gives consent

Having read the Privacy Policy above, aware that my consent is purely optional, as well as revocable at any time, I give my consent to the processing of my data for the Company to send promotional / commercial communications and to carry out marketing activities in the manner and in accordance with the provisions of the Privacy Policy. privacy's information

Gives consent
denies consent
Technical data

NIMBUS 5 POCKET 30 M R290

NIMBUS 5 POCKET 50 M R290

NIMBUS 5 POCKET 80 M/M-T R290

NIMBUS 5 POCKET 120 M/M-T R290

NIMBUS 5 POCKET 150 M/M-T R290
PERFORMANCES IN HEATING

Capacity at -7°C / +35 °C (Min./Nom./Max.)

0.82 / 2.50 / 3.14

1.06 / 5.00 / 5.53

1.63 / 7.00 / 7.92

2.20 / 9.00 / 11.0

2.19 / 11.0 / 12.43

COP nom -7°C / +35 °C

3.10

3.00

3.00

3.00

2.80

Capacity at +7°C / +35 °C (Min./Nom./Max.)

1.21 / 3.00 / 3.73

1.63 / 5.00 / 7.37

2.37 / 8.00 / 11.08

3.33 / 12.0 / 14.08

3.39 / 15.0 / 16.81

COP nom at +7°C / +35 °C

5.10

5.00

4.80

4.80

4.30

Capacity at +2°C / +45 °C (Min./Nom./Max.)

1.02 / 1.90 / 3.78

1.31 / 3.10 / 6.69

1.99 / 4.60 / 9.89

2.72 / 6.40 / 13.11

2.70 / 7.50 / 15.09

COP nom +2°C / +45 °C

3.20

3.10

3.20

3.40

3.30

Capacity at +7°C / +55 °C (Min./Nom./Max.)

1.12/2.20/3.94

1.42/3.80/6.45

2.17/5.80/9.85

3.00/7.70/12.44

2.98/9.50/15.19

COP nom +7°C / +55 °C

3.10

3.00

3.00

3.20

3.15
PERFORMANCES IN COOLING
ERP DATA
PRODUCT CODE

Ariston Nimbus 5 Installation QSG (PDF, 1.08 mb)

Ariston Nimbus 5 Leaflet (PDF, 535.68 kb)

Ariston Nimbus 5 M Pocket Datasheet (PDF, 1.54 mb)

Ariston Nimbus 5 M Pocket Installation Manual (PDF, 10.41 mb)

Ariston Nimbus 5 M Pocket Product Fiche (PDF, 898.17 kb)

Ariston Nimbus 5 M Pocket User Manual (PDF, 2.61 mb)

Ariston Nimbus 5 M Range Catalogue (PDF, 19.78 mb)

Statement of compliance for UK PSTI - NIMBUS 5 M R290 (PDF, 445.19 kb)
