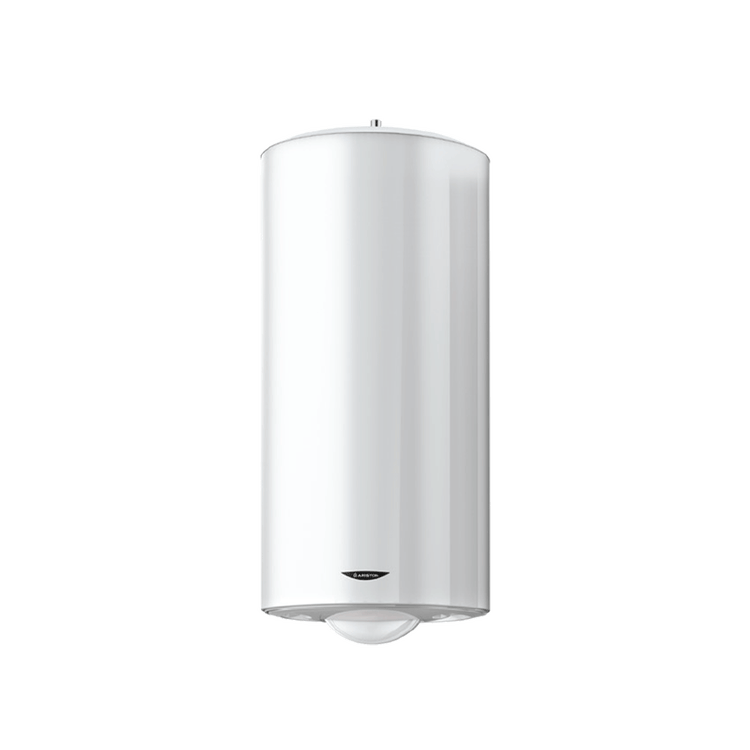

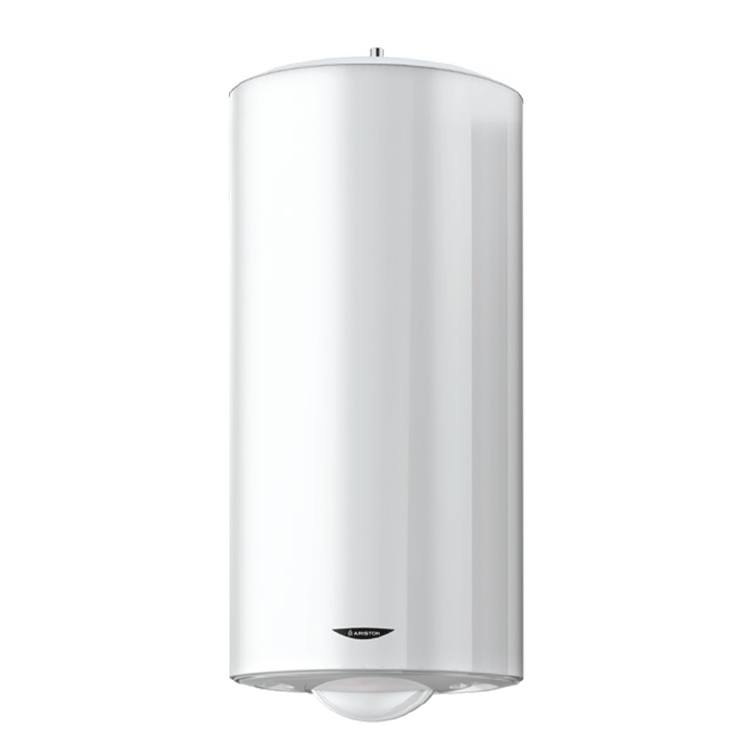

ELECTRIC STORAGE WATER HEATERS

ARI THER

ELECTRIC STORAGE WATER HEATERS ARI THER

advantages and benefits

  • Thermostat Temperature Regulation.
  • Ecological polyurethane insulation.
  • Titanium enamel tank tested at 16 Bar.
  • Oversize magnesium anode.
  • 5 flange bolts.
  • Exclusive Italian design.
  • Wall-hung.
Technical data

ARI 150 VERT 560 THER MO EU

ARI 200 VERT 560 THER MO EU

ARI 150 HORD 570 THER MO EU

ARI 200 HORD 570 THER MO EU

DESCRIPTION

Nominal Capacity

150 L

200 L

150 L

200 L

Installation

V

V

H

H

Power

1,8 kW

2,2 kW

2,0 kW

2,0 kW

Voltage

230 V

230 V

230 V

230 V

Heating time (∆T=45°C)

5,15 h,min

5,45 h,min

4,40 h,min

5,50 h,min

Heat dispersion at 65°C

1,48 kWh/24h

1,73 kWh/24h

1,68 kWh/24h

2,02 kWh/24h

Max working pressure

6 bar

6 bar

6 bar

6 bar

Max working temperature

65 °C

70 °C

75 °C

75 °C

Weight

37 kg

45 kg

37 kg

45 kg

Class

25D IP

25D IP

25D IP

25D IP

more information ari_ther_ _1200x1200_1
