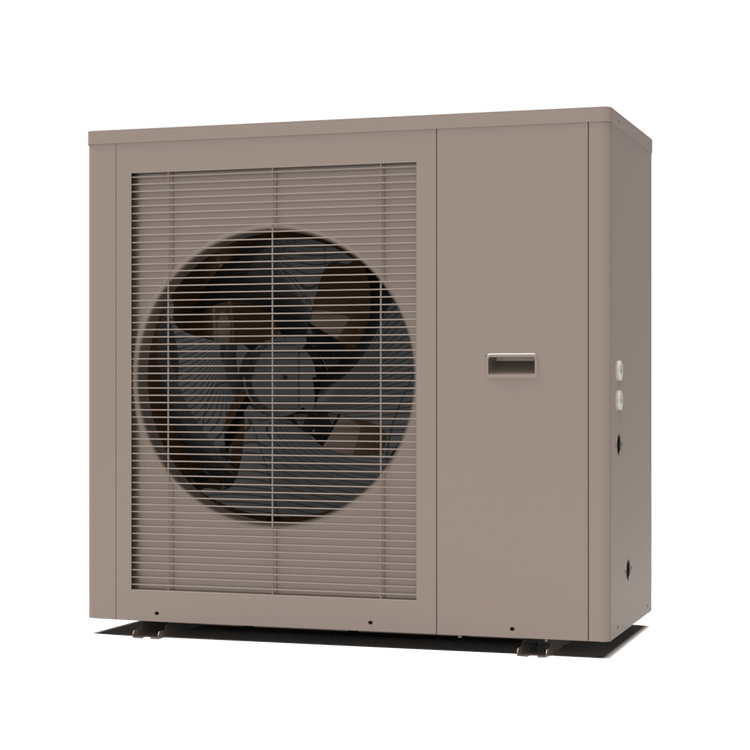

AR-10PM HX MT

COMMERCIAL HEATPUMP WATER HEATER

AR-10PM HX MT

Features
request a quoterequest a quoteContact us
Home | COMMERCIAL HEAT PUMP WATER HEATERS | AR-10PM HX MT
COMMERCIAL HEATPUMP WATER HEATER

AR-10PM HX MT

request a quoterequest a quoteContact us
COMMERCIAL HEATPUMP WATER HEATER AR-10PM HX MT
COMMERCIAL HEATPUMP WATER HEATER AR-10PM HX MT

advantages and benefits

EFFICIENCY

  • COP>4.
  • Hot water up to 60°C.Gree Compressor.
  • Patented tube in shell heat exchanger.
  • R410a ecological refrigerant gas.
  • Fan blade with special «low noise» shape.
  • Electronic expansion valve.

EASE OF USE

  • Friendly HMI with multi-function display.
  • Water pump embedded (AR-6PM).

SAFETY

  • Pressure and temperature sensors and switches.
  • Defrosting system thanks to a special valve.
  • Over-current and over-temperature protection.
request a quoterequest a quoteContact us
Technical data

AR-6PM HX MT

AR-10PM HX MT
TECHNICAL DATA

Hot water capacity

6.8 kW

11.6 kW

Power input

1.65 kW

2.49 kW

COP

4.12 W/W

4.66 W/W

Hot water volume

142 L/h

250 L/h

Max. Power Input

2.0 kW

3.68 kW

Max. Running Current

10.5 A

17.1 A

Power supply

200-240V/1N-50Hz

200-240V/1N-50Hz

Compressor Quantity

1

1

Compressor Type

Rotary

Rotary

Compressor Brand

Gree

Gree

Throttle Device

Electronic Expansion Valve

Electronic Expansion Valve

Fan Quantity

1

1

Circulation Pump

Gree

Fan Motor Input

36 W

85 W

Water flow volume

1.2 m3/h

2 m3/h

Water pressure drop

36 kPa

65 kPa

Water connection

36 Inch

Noise

59 dB(A)

54 dB(A)

Air volume

4000 m3/h

Air Discharge Type

Horizontal

Horizontal

Max. Outlet Water Temp

60 °C

60 °C

Operation Range

-7~45 °C

-15~43 °C

Condenser

Patented Tube in Shell Heat Exchanger

Patented Tube in Shell Heat Exchanger

Evaporator

Ø7 mm finned Heat Exchanger

Ø7 mm finned Heat Exchanger

Defrosting

By 4-Way valve

By 4-Way valve

Controller

Multi-Function Controller

Multi-Function Controller

Display

LED200

5 inch Colorful Touch Display

Refrigerant

R410A

R410A

Cabinet

Eco-Friendly Galvanized Metal

Eco-Friendly Galvanized Metal

Net Weight

69 kg

94 kg

Gross Weight

79 kg

105 kg

Net Dimension

936x375x605 mm (L/W/H)

960x470x910 mm (L/W/H)

Shipping Dimension

955x410x760 mm (L/W/H)

1020x500x950 mm (L/W/H)
more information ar 10pm 1200x1200
