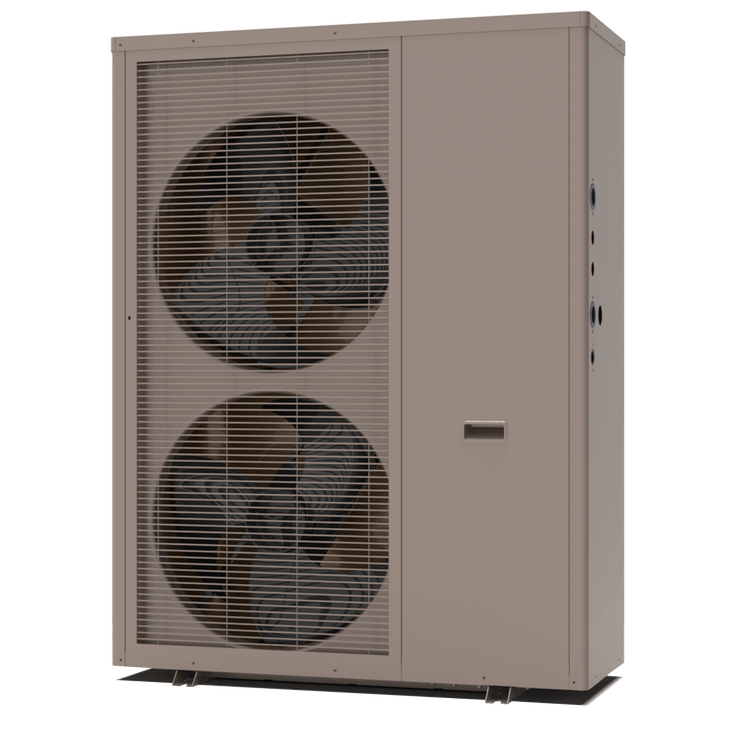

COMMERCIAL HEATPUMP WATER HEATER AR-20PTP HX MT
COMMERCIAL HEATPUMP WATER HEATER AR-20PTP HX MT

advantages and benefits

EFFICIENCY

  • COP>4.
  • Hot water up to 60°C.
  • Copeland Compressor.
  • Patented tube in shell heat exchanger.
  • R410a ecological refrigerant gas.
  • Fan blade with special «low noise» shape.
  • Electronic expansion valve.

EASE OF USE

  • Friendly HMI with multi-function display.

SAFETY

  • Pressure and temperature sensors and switches.
  • Defrosting system thanks to a special valve.
  • Over-current and over-temperature protection.
request a quoterequest a quoteContact us
Technical data

AR-20PTP HX MT

AR-40PTP HX MT
TECHNICAL DATA

Hot water capacity

23 kW

48 kW

Power input

4.84 kW

9.97 kW

COP

4.75 W/W

4.81 W/W

Hot water volume

494 L/h

1031 L/h

Max. Power Input

6.9 kW

14.3 kW

Max. Running Current

11.5 A

24.2 A

Power supply

380-415V/3N-/50Hz

380-415V/3N-/50Hz

Compressor Quantity

1

2

Compressor Type

Scroll

Scroll

Compressor Brand

Copeland ZW Series Heat Pump Dedicated Compressor

Copeland ZW Series Heat Pump Dedicated Compressor

Throttle Device

Electronic Expansion Valve

Electronic Expansion Valve

Fan Quantity

2

2

Fan Motor Input

75×2 (W)

200×2 (W)

Water flow volume

4 m3/h

8.3 m3/h

Water pressure drop

129 kPa

110 kPa

Water connection

1.2 Inch

1.5 Inch

Noise

56 dB(A)

61 dB(A)

Air volume

3340X2 m3/h

5500X2 m3/h

Air Discharge Type

Horizontal

Vertical

Max. Outlet Water Temp

60 °C

60 °C

Operation Range

-15~43 °C

-15~43 °C

Condenser

Patented Tube in Shell Heat Exchanger

Patented Tube in Shell Heat Exchanger

Evaporator

Ø7 mm finned Heat Exchanger

Ø7 mm finned Heat Exchanger

Defrosting

By 4-Way valve

By 4-Way valve

Controller

Multi-Function Controller

Multi-Function Controller

Display

5 inch Colorful Touch Display

5 inch Colorful Touch Display

Refrigerant

R410A

R410A

Cabinet

Eco-Friendly Galvanized Metal

Eco-Friendly Galvanized Metal

Net Weight

154 kg

350 kg

Gross Weight

163 kg

391 kg

Net Dimension

1000x395x1315 mm (L/W/H)

1700x800x1735 mm (L/W/H)

Shipping Dimension

1070x450x1445 mm (L/W/H)

1830X880X1900 mm (L/W/H)
more information ar 20ptp 1200x1200
