COLLECTORS FOR FORCED CIRCULATION

KAIROS XP 2,5-1H

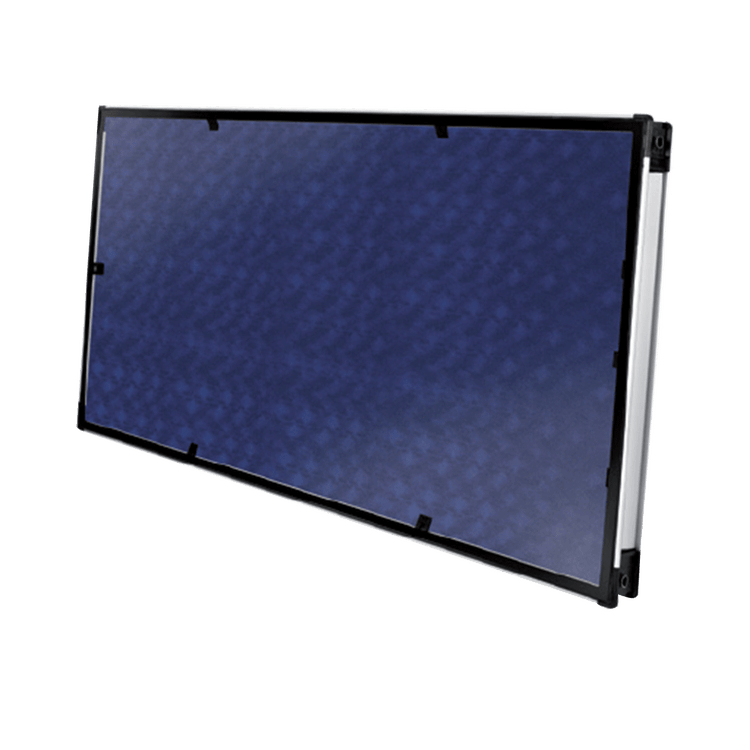

SOLAR WATER HEATER KAIROS XP 2,5-1H

advantages and benefits

PERFORMANCES

  • Kairos XP 2,5-1 has a serpentine absorber that makes it suitable for big systems.
  • The blue selective surface treatment provides very high performances with the 95% absorbtion and only 5% reflection.

DESIGN AND TECHNOLOGY

  • Kairos XP 2,5-1 offers a very enjoyble design in its category, thanks to the accurate study of the lines, and of the external shape.
  • The new o-ring connection allows a very quick installation, even eliminating the risk to damage the hydraulic connection kit.

QUALITY

  • The special tempered glass with low content iron assures very high protection against the hail, and against the collector’s loading.
  • The technopolymer angle, that integrates the condensate exhaust and the flanged manifold outlet, ensures a more precise production process.
Technical data

KAIROS XP 2,5-1V/H

DESCRIPTION

Empty mass

46 kg

Working pressure

6 bar

Collector pipe diameter

18 mm

Gross surface

2,51 m2

Amount of collector liquid

2,1 L

Absorption

95 %

Emission

5 %

Aperture surface

2,26 m2

Absorbent surface

2,24 m2

Specific thermic capacity

15,32 kJ/K

η0

0,81

k1

3,13 W/m2K

k2

0,016 W/m2K2

T stagnation

198 °C

more information kairos xp 2_5 1h   1200x1200
