CYLINDER

MAXIS CD1

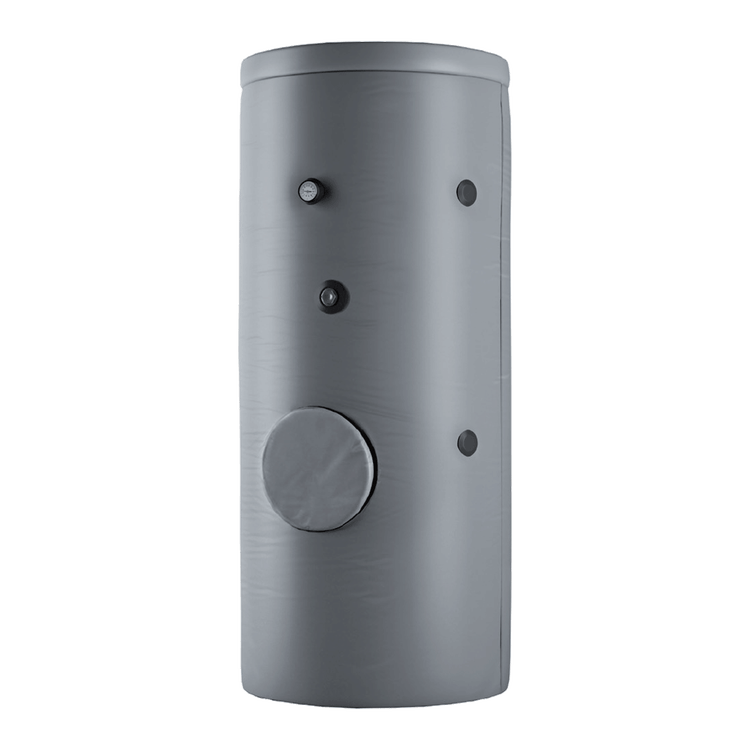

SOLAR WATER HEATER MAXIS CD1

advantages and benefits

Floor-standing vertical single-coil cylinder for the production of domestic hot water. Integrable with forced circulation solar system or high power heating system.

  • Steel boiler with exclusive titanium- based enamel treatment.
  • Magnesium anti-corrosion anode.
  • Recirculation.
  • Inspection flange.
  • Integrated probe-housing sheath.
  • Available heating element kit.
  • Integrated thermometer.
  • Flexible removable insulation.
  • Active anode available as accessory.
  • 400 mm inspection flange.
  • Available heating element up to 15 kw on the lateral flange, and up to 6 kW on the cap connection.
Technical data

MAXIS CD1 800

MAXIS CD1 1000

DESCRIPTION

Capacity

757 L

862 L

Maximum temperature

95 °C

95 °C

Thermal loss (EN 60379)

3 kWh/24h

3,2 kWh/24h

Maximum operating pressure

8 bar

8 bar

Coil surface

2,5 m2

3 m2

Exchanger ouput

34,8 kW

41,8 kW

Pressure loss through coil

15 mbar

19 mbar

Net weight

1016 kg

1154 kg

more information maxis_cd1_ _1200x1200
